A Diode Matrix model M792
Date(s)
Level of description
Item
Extent and medium
Object
Context area
Repository
Archival history
Immediate source of acquisition or transfer
Content and structure area
Scope and content

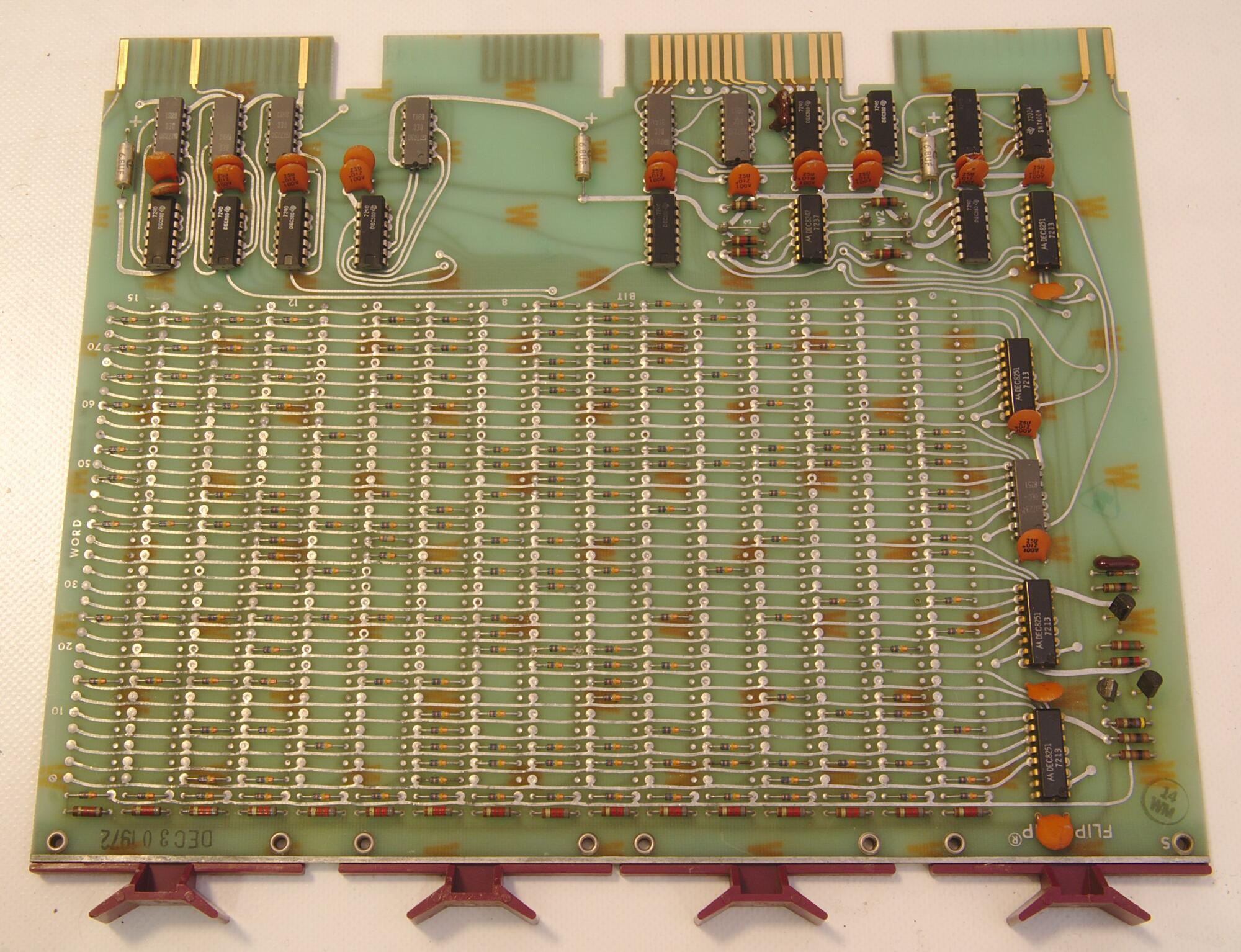

A diode matrix is an extremely low-density form of read-only memory. It's one of the earliest forms of ROMs (dating back to the 1950s). Each bit in the ROM is represented by the presence or absence of one diode. The ROM is easily user-writable using a soldering iron and pair of wire cutters.This diode matrix board is a floppy disk boot ROM for a PDP-11, and consists of 32 16-bit words. When you access an address on the ROM, the circuit returns the represented data from that address.
